1. 简介

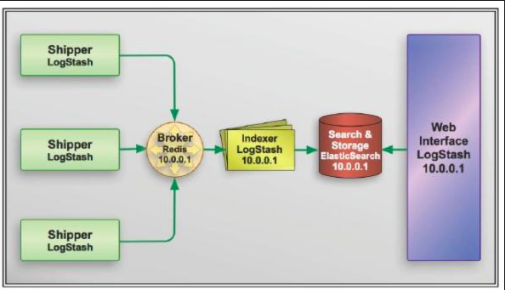

ELK/LEK = Elasticsearch + Logstash + Kibana

  • Logstash: 采集, 解析, 传输
  • Elasticsearch: 存储,索引,查询
  • Kibana: 查询界面,可视化分析

Documents

2. 安装

所有安装包都可以从官网直接下载,尽量保证e,l,k的版本互相匹配

2.1 logstash

下载安装包解压后进入目录

2.1.1 配置文件

编辑配置文件,配置文件中包含三部分:

  • input: 输入
  • filter: 过滤(解析)器
  • output: 输出

$ vim logstash.conf

一个简单的模板

input {
        file {
                # 日志文件路径
                path => "/a/b/c_*.log"
                #path => "/home/test_lek.log"
                # 可以为不同的输入设置不同的type
                type => "c"
        }
        file {
                path => "/a/b/e_*.log"
                type => "e"
        }
}

filter {
        # 过滤掉不符合格式的行
        if [message] !~ "^\d{4}\/\d{2}\/\d{2}-\d{2}:\d{2}:\d{2}*" {
                drop {}
        }

        # grok正则解析, 其中DATETIME/SOMETHING都是自定义的正则公式, 存放在patterns/extra文件中, logstash也有内置的一些正则公式, 比如NUMBER
        grok {
                match => {"message" => "%{DATETIME:tmp_timestamp}\s\[%{SOMETHING:thread}\]\s%{SOMETHING:log_level}\s%{SOMETHING:cls}\s%{SOMETHING:something}\s%{SOMETHING:something}\s%{ANYTHING:text}"}
        }

        if [text] =~ "^\{.*\}$" {
                # json解析
                json {
                        source => "text"
                        target => "o" # 不指定target则解析出来的字段将作为顶级属性
                        add_tag => ["json"]
                }
        } else if [text] =~ "^\[POST\s\/rest\/gifts\]\sGift request\s*" {
                grok {
                        match => {"text" => "\[POST\s\/rest\/gifts\]\sGift request\s->\s%{ANYTHING:GiftRequest}"}
                }
                json {
                        source => "GiftRequest"
                        target => "GiftRequest"
                        add_tag => ["GiftRequest"]
                }
        }

        date {
                # 将tmp_timestamp字段解析为日期类型,并赋值给 @timestamp
                match => [ "tmp_timestamp" , "yyyy/MM/dd-HH:mm:ss" ]
        }

        if "json" in [tags] {
                mutate {
                        add_field => {
                                # 地理位置解析,es进行存储的时候geoip[location]字段作为geoip类型
                                "[geoip][location][lat]" => "%{o[Latitude]}"
                                "[geoip][location][lon]" => "%{o[Longitude]}"
                        }
                }
        }

}

output {
        elasticsearch {
                hosts => ["x.x.x.x"]
                # 按日期创建索引
                index => "a-b-%{+YYYY.MM.dd}"
        }
        # 一般调试时时使用
        stdout { codec => rubydebug }
}
2.1.2 正则公式
$ mkdir patterns
$ vim extra
DATETIME \d{4}/\d{2}/\d{2}-\d{2}:\d{2}:\d{2}
SOMETHING .*?
ANYTHING .*
JSON \{\\".*?\}
2.1.3 启动

$ bin/logstash -f logstash.conf

2.2 elasticsearch

下载安装包解压后进入目录

2.2.1 配置文件

$ vim config/elasticsearch.yml

这里仅列出修改的地方

# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
cluster.name: <what you like>

# ----------------------------------- Paths ------------------------------------
#
# Path to directory where to store the data (separate multiple locations by comma):
#
path.data: /data1/data/elasticsearch
#
# Path to log files:
#
path.logs: /data/logs/elasticsearch
#

# ----------------------------------- Memory -----------------------------------
#
# Lock the memory on startup:
#
bootstrap.mlockall: true
#
# Make sure that the `ES_HEAP_SIZE` environment variable is set to about half the memory
# available on the system and that the owner of the process is allowed to use this limit.
#
# Elasticsearch performs poorly when the system is swapping the memory.

# ---------------------------------- Network -----------------------------------
#
# Set the bind address to a specific IP (IPv4 or IPv6):
#
network.host: 0.0.0.0
#
# Set a custom port for HTTP:
#
# http.port: 9200
http.compression: true

# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when new node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
discovery.zen.ping.unicast.hosts: ["x", "y", "z"]
#
# Prevent the "split brain" by configuring the majority of nodes (total number of nodes / 2 + 1):
# 一条数据至少存储到x个节点上之后才认为存储成功
discovery.zen.minimum_master_nodes: 2

# ---------------------------------- Gateway -----------------------------------
#
# Block initial recovery after a full cluster restart until N nodes are started:
#
gateway.recover_after_nodes: 2
2.2.2 安装插件

两个比较好用的es管理插件:head, kopf

$ bin/plugin -install mobz/elasticsearch-head
$ bin/plugin -install lmenezes/elasticsearch-kopf

这两个插件在es5.x之后安装方式有所改变

2.2.3 内存设置

一般使用ES_HEAP_SIZE环境变量来设置

可以在启动脚本中设置

$ vim bin/elasticsearch

ES_HEAP_SIZE=8g
2.2.4 启动

$ bin/elasticsearch

确认启动成功:http://localhost:9200

通过插件查看集群状态:

  1. http://localhost:9200/_plugin/head
  2. http://localhost:9200/_plugin/kopf

2.3 kibana

下载安装包解压后进入目录

2.3.1 配置

$ vim config/kibana.yml

仅列出改动部分

# Kibana is served by a back end server. This controls which port to use.
# server.port: 5601

# The host to bind the server to.
server.host: "0.0.0.0"

# The Elasticsearch instance to use for all your queries.
elasticsearch.url: "http://x.x.x.x:9200"

# Set the path to where you would like the process id file to be created.
pid.file: /var/run/kibana.pid

# If you would like to send the log output to a file you can set the path below.
logging.dest: /data/logs/kibana.out

2.3.2 安装插件

sense editor是一个可以在kibana中通过rest api访问es的插件

bin/kibana plugin --install elastic/sense

2.3.3 启动

$ bin/kibana serve

查看: http://localhost:5601
